제품 상세 정보:
|
| 유형: | 둥근 | 애플리케이션: | 건설, 장식, 산업, 메치닐, 조선 |
|---|---|---|---|
| 기준: | ASTM, AISI, JIS, EN | 등급: | S32654 1.4652 654SMO |
| 모양: | 둥근 | 인증: | ISO,BV,SGS |
| 치수: | 3mm-800mm | 표면: | 밝고 닦고 검습니다 |
| 기술: | 추운 drawn& ;굴려져서 뜨거워지세요 | 길이: | 고객의 요구 사항 |
| 포장: | 표준 항해에 적합한 패키지 | 가격 기간: | CIF CFR FOB 공장도 |
| 강조하다: | Super Austenitic Stainless Steel Round Bar,UNS 654SMO stainless steel rod,X1CrNiMOCUN24-22-8 solid rod |
||

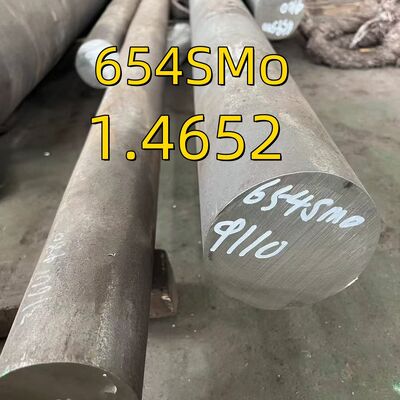

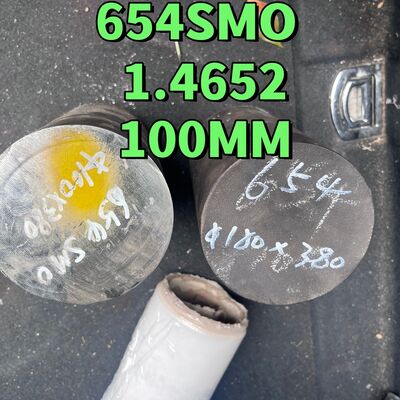

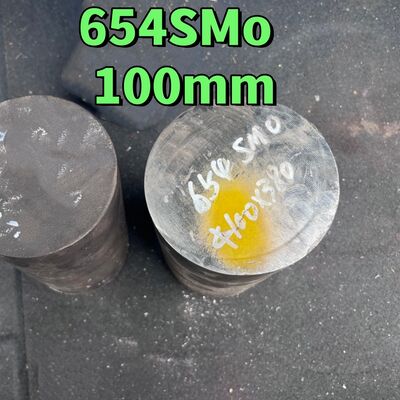

S32652(UNS 654SMO)Super Austenitic Stainless Steel Round Bar 1.4652 / X1CrNiMOCUN24-22-8 Solid Rod
Material Description:
654SMo (S32654, 1.4652) super austenitic stainless steel is a super austenitic stainless steel containing 23% nickel, 25% chromium and 7% molybdenum, its corrosion resistance is much better than ordinary austenitic steel.
654SMo (S32654, 1.4652) super austenitic stainless steel contains high molybdenum. When processing seamless pipe perforations, the steel type is hard and sticky, and it is easy to eccentric or crack. There is a great risk in perforation. The round steel center is perforated and then pierced, and the rolling mill is cold rolled or cold drawn. Although the cost is increased, it can guarantee a high success rate.
654SMo (S32654, 1.4652) super austenitic stainless steel has very good local corrosion resistance. It has good pitting corrosion resistance and good stress corrosion resistance under seawater, aeration, gaps, and low-speed erosion conditions. Alternative materials for nickel-based alloys and titanium alloys. Secondly, in terms of high temperature resistance or corrosion resistance, it has more excellent high temperature resistance or corrosion resistance than 904L and 254SMO.
Description:
S32652 UNS 654SMO 1.4652 X1CrNiMOCUN24-22-8 Super Austenitic Stainless Steel Pipe and Tube
Standard:
ASTM A312 Seamless and Welded Austenitic Stainless Steel Pipe
ASTM A269 Seamless and Welded Austenitic Stainless Steel Pipe for General Equipment
ASTM B673, ASTM B674, ASTM B677, ASTM B675, ASTM B676, ASTM B690
Material: S32652 UNS 654SMO 1.4652 X1CrNiMOCUN24-22-8
Main chemical composition:
C:≤0.02
Si:≤0.05
Mn:2.00-4.00
Ni:21.0-23.0
P:≤0.03
S:≤0.005
Cr:23-25
Mo:7.0-8.0
N:0.45 - 0.55
Cu:0.3-0.6
Performance characteristics:
1. Excellent pitting and crevice corrosion resistance in harsh corrosive environments
2. Excellent mechanical properties and high yield strength
3. Good processability
Size Range for tubing:
| OD:1/4" (6.25mm) to 8" (203mm) |
| WT 0.02" (0.5mm) to 0.5"(12mm) |
| Length:15m(Max) or as your requirement |
Process:
Cold drawn, Cold rolled, Precision Rolled for Seamless Pipe or Tube
Gas tungsten arc welding, Plasma arc welding (PAW),Submerged arc welding (SAW) For Welded Pipe or Tube
Finish: Annealed & pickled, bright annealing, polished
Ends: Beveled or plain end, square cut, burr free ,Plastic Cap at Both end
Packing: Bare packing/bundle packing with woven bag/wooden or steel frame crate packing/plastic cap protection at the both sides of tubes and suitably protected for sea-worthly delivery or as requested.
Inspection and Test Procedure
1. 100% PMI,Spectro Chemical Aanlysis Test for Raw Material
2. 100% Dimension & Visual Examination
3. Mechanical Properties Test Include Tension Test,Flaring Test (For Seamless tube/pipe)/ Flange Test (For Welded Pipe & Tube), Hardness Test ,Reversed Flattening Test
4. 100% Hydrostatic Test or 100% NON-DESTRUCTIVE Test (ET or UT)
5. Radiographic Test for Welded Pipe (shall be accordance with specification,or shall be as agreed upon between the purchaser and vendor)
6. Straightness Test (optional)
7. Roughness Test (optional)
8. Intergranular Corrosion Test(optional)
9. Impact Test (optional)
10. Grain Size Determinations (optional)
NOTES : ALL THE TESTS AND INSPECTION RESULT NEED TO BE SHOWED IN REPORTS ACCORDING TO STANDARD AND SPECIFICATION.
and Tube
Material Description:
654SMo (S32654, 1.4652) super austenitic stainless steel is a super austenitic stainless steel containing 23% nickel, 25% chromium and 7% molybdenum, its corrosion resistance is much better than ordinary austenitic steel.
654SMo (S32654, 1.4652) super austenitic stainless steel contains high molybdenum. When processing seamless pipe perforations, the steel type is hard and sticky, and it is easy to eccentric or crack. There is a great risk in perforation. The round steel center is perforated and then pierced, and the rolling mill is cold rolled or cold drawn. Although the cost is increased, it can guarantee a high success rate.
654SMo (S32654, 1.4652) super austenitic stainless steel has very good local corrosion resistance. It has good pitting corrosion resistance and good stress corrosion resistance under seawater, aeration, gaps, and low-speed erosion conditions. Alternative materials for nickel-based alloys and titanium alloys. Secondly, in terms of high temperature resistance or corrosion resistance, it has more excellent high temperature resistance or corrosion resistance than 904L and 254SMO.
Description:
S32652 UNS 654SMO 1.4652 X1CrNiMOCUN24-22-8 Super Austenitic Stainless Steel Bar
Material: S32652 UNS 654SMO 1.4652 X1CrNiMOCUN24-22-8
Main chemical composition:
C:≤0.02
Si:≤0.05
Mn:2.00-4.00
Ni:21.0-23.0
P:≤0.03
S:≤0.005
Cr:23-25
Mo:7.0-8.0
N:0.45 - 0.55
Cu:0.3-0.6
Performance characteristics:
1. Excellent pitting and crevice corrosion resistance in harsh corrosive environments
2. Excellent mechanical properties and high yield strength
3. Good processability
Size Range for tubing:
| OD:1/4" (6.25mm) to 8" (203mm) |
| WT 0.02" (0.5mm) to 0.5"(12mm) |
| Length:15m(Max) or as your requirement |
Process:
Cold drawn, Cold rolled, Precision Rolled for Seamless Pipe or Tube
Gas tungsten arc welding, Plasma arc welding (PAW),Submerged arc welding (SAW) For Welded Pipe or Tube
Finish: Annealed & pickled, bright annealing, polished
Ends: Beveled or plain end, square cut, burr free ,Plastic Cap at Both end
Packing: Bare packing/bundle packing with woven bag/wooden or steel frame crate packing/plastic cap protection at the both sides of tubes and suitably protected for sea-worthly delivery or as requested.
Inspection and Test Procedure
1. 100% PMI,Spectro Chemical Aanlysis Test for Raw Material
2. 100% Dimension & Visual Examination
3. Mechanical Properties Test Include Tension Test,Flaring Test (For Seamless tube/pipe)/ Flange Test (For Welded Pipe & Tube), Hardness Test ,Reversed Flattening Test
4. 100% Hydrostatic Test or 100% NON-DESTRUCTIVE Test (ET or UT)
5. Radiographic Test for Welded Pipe (shall be accordance with specification,or shall be as agreed upon between the purchaser and vendor)
6. Straightness Test (optional)
7. Roughness Test (optional)
8. Intergranular Corrosion Test(optional)
9. Impact Test (optional)
10. Grain Size Determinations (optional)
NOTES : ALL THE TESTS AND INSPECTION RESULT NEED TO BE SHOWED IN REPORTS ACCORDING TO STANDARD AND SPECIFICATION.
