제품 상세 정보:
|
| 유형: | 둥근 | 애플리케이션: | 건설, 장식, 산업, 메치닐 |
|---|---|---|---|
| 기준: | DIN, ASTM, AISI, JIS, EN | 등급: | S41500, SUSF6NM, DIN 1.4313 X3CrNIMO13-4 |
| 모양: | 둥근 | 인증: | ISO,BV,SGS |
| 치수: | 3mm-800mm | 표면: | 밝고 닦고 검습니다 |
| 기술: | 추운 drawn& ;굴려져서 뜨거워지세요 | 포장: | 표준 항해에 적합한 패키지 |
| 가격 기간: | CIF CFR FOB 공장도 | ||
| 강조하다: | X3CrNiMo13-4 stainless steel round bar,F6NM sour service round bar,Super martensitic oil & gas steel |
||

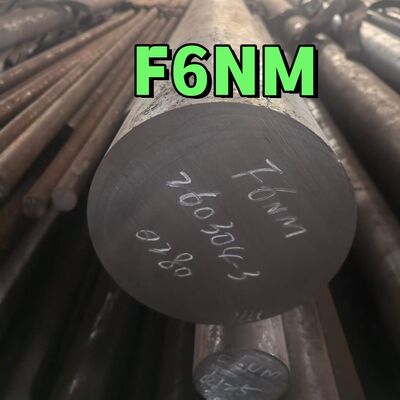

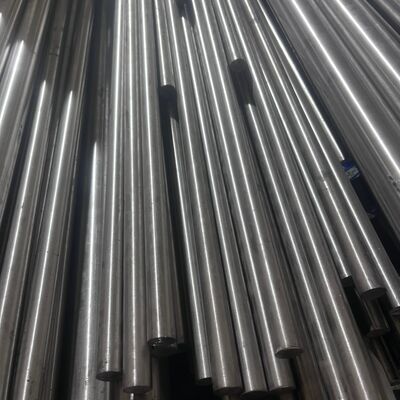

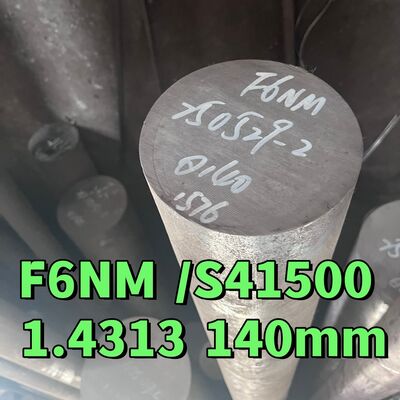

ASTM A182 Grade F6NM / EN 1.4313 (X3CrNiMo13-4) Super Martensitic Stainless Steel
F6NM, also known as UNS S41500 and German standard EN 1.4313, is a low-carbon nickel-molybdenum alloyed super martensitic stainless steel, specified under ASTM A182, A276, A479 and EN 10088-3.
With controlled low carbon, 13% chromium, 4% nickel and 0.7% molybdenum, F6NM delivers high tensile strength, exceptional sub-zero impact toughness down to -60°C, improved weldability and outstanding resistance to chloride pitting, crevice corrosion and sulfide stress cracking (SSC), fully compliant with NACE MR0175 / ISO 15156 for sour oil & gas environments.
After solution annealing at 1025–1065°C followed by double tempering at 595–620°C, the material achieves a maximum hardness of 23 HRC for sour service applications. It exhibits excellent cavitation erosion resistance, making it ideal for hydraulic and hydro power components.
Main applications: valve bodies, valve stems, pump shafts, turbine blades, hydro runner parts, forged flanges and pipeline fittings in petroleum, petrochemical, marine, power generation and hydropower industries.
Available products: round bar, flat bar, plate, seamless pipe, forgings, flanges and fittings, supplied with DIN EN 10204 3.1 / 3.2 test certificates for European market.
|
Steel Grade
|
Specification
|
Specification Name
|
|
04Cr13Ni5Mo / S41595
|
GB/T 3280
|
Cold rolled stainless steel plate, sheet and strip
|
|
GB/T 4237
|
Hot rolled stainless steel plate, sheet and strip
|
|
|
UNS S41500
|
ASTM A276/A276M
|
Standard specification for stainless steel bars and shapes
|
|
ASTM A240/A240M
|
Standard specification for Cr and Cr-Ni stainless steel plate, sheet and strip for pressure vessels and for general applications
|
|
|
ASTM A479/A479M
|
Standard Specification for Stainless Steel Bars and Shapes for Use in Boilers and other Pressure Vessels
|
|
|
1.4313 / X3CrNiMo13-4
|
EN 10088-2
|
Stainless Steel Part 2-Technical delivery conditions for sheet/plate and strip of corrosion resisting steels for general purpose
|
|
EN 10088-3
|
Stainless Steels Part 3-Technical delivery conditions for semi-finished products, bars, rods, wire, sections and bright products of corrosion resisting steels for general purposes
|
|
|
EN 10272
|
Stainless steel bars for pressure purposes
|
|
|
SUS F 6NM
|
JIS G3214
|
Stainless steel forgings for pressure vessels
|
|
Elements
|
C
|
Si
|
Mn
|
P
|
S
|
Ni
|
Cr
|
Mo
|
N
|
|
Content%
|
≤0.05
|
≤0.70
|
≤1.50
|
≤0.040
|
≤0.015
|
3.50~4.50
|
12.00~14.00
|
0.30~0.70
|
≥0.02
|
|
Products produced as per other specifications or technical agreements (if need) are available.
|
|||||||||
|
Delivery Condition
|
Mechanical Properties
|
|||||
|
Rp0.2/(N/mm2)
|
Rm/(N/mm2)
|
A/%
|
Zb/%
|
AkV2d/J
|
HBW
|
|
|
Annealed
|
/
|
≤1100
|
/
|
/
|
/
|
≤320
|
|
Q+T 700
|
≥520
|
700~850
|
≥15
|
/
|
≥70
|
/
|
|
Q+T 780
|
≥620
|
780~980
|
≥15
|
/
|
≥70
|
/
|
|
Q+T 900
|
≥800
|
900~1100
|
≥12
|
|
≥50
|
/
|
|
Products produced as per other specifications or technical agreements (if need) are available.
|
||||||
