제품 상세 정보:
|
| OD: | 8-300mm | 표면: | 검정색과 밝음 |
|---|---|---|---|
| 길이: | 1-12m | 기준: | AISI, ASTM, DIN, GB, JIS, SUS |
| 기술: | 핫-롤드 또는 냉간 압연 처리합니다 | 예어: | 스테인레스 스틸 바 |
| 로터 모양: | 4개의 날개 | 너비: | 20-610mm |
| 지름: | 1mm-800mm | 차원 표준: | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| 가격 조건: | FOB, EXW, CIF, CFR | 견본: | 사용 가능 |
| 프로세스: | 뜨겁게 끌어내진 냉기는 회전했습니다 | 같은 등급: | 1.4460 |
| 두께: | 0.25-200mm | 재료: | 초기 |
| 무게: | 5 - 20kg/팩 | 처리 방법: | 지면, 껍질, 밀링 등 |
| Product Name | S20910 XM-19 Alloy Round Bar |
| Type | Cold drawn, Hot rolled, Forged |
| Shape | Round |
| Standard | GB,AISI,ASTM,DIN,EN,JIS |
| Grade | Stainless steel 304 / 304L / 310S / 316L / 317L / 904L / 2205 / 2507 / 32760 / 253MA / 254SMo / S31803 / S32750 / S32205 etc |
| Monel 400 / Monel K-500 | |
| Inconel 600 / Inconel 601 / Inconel 625 / Inconel 617 / Inconel 690 / Inconel 718 / Inconel X-750 | |
| Incoloy A-286 / Incoloy 800 / Incoloy 800H / Incoloy 800HT Incoloy 825 / Incoloy 901 / Incoloy 925 / Incoloy 926 | |
| Nimonic 50-60 / Nimonic 80A / Nimonic 90 / Nimonic 105 / Nimonic 263 / Nimonic L-605 | |
| Hastelloy B / Hastelloy B-2 / Hastelloy B-3 / Hastelloy C / Hastelloy C-276 / Hastelloy C-22 Hastelloy C-4 / Hastelloy C-200 / Hastelloy G-35 / Hastelloy X / Hastelloy N | |
| Austenitic stainless steel 904L / XM-19 / 316Ti / 316LN / 371L / 310S / 253MA | |
| DP steel 254SMo / F50 / 2205 / 2507 / F55 / F60 / F61 / F65 | |
| PH stainless steel 15-5PH / 17-4PH / 17-7PH | |
| Diameter | 6mm - 600mm |
| Finish | Bright, Pickling, Black, Polished |
| Packing | Wooden box, Waterproof polybag |
| Inspection | TUV,SGS,BV,ABS,LR and so on |
| Application | Construction, shipbuilding, Chemical, Pharmaceutical & Bio-Medical, Petrochemical & Refinery, Environmental, Food Processing, Aviation, Chemical Fertilizer, Sewage Disposal, Desalination, Waste Incineration etc. |
| Processing Service | Machining : Turning / Milling / Planing / Drilling / Boring / Grinding / Gear Cutting / CNC Machining Deformation processing : Bending / Cutting / Rolling / Stamping Forged |
| Delivery Time | 7-40 days |
| Trade Term | FOB CIF CFR CIP DAP DDP EXW |
| Payment | T/T, L/C,D/A,D/P, Western Union,MoneyGram,According to customer requirements payments for offline orders. |
| Transportation | By air, by sea, by train, by truck |
| Sample | Free |
| Warranty | Trade assurance after sales service |
| INCONEL SERIES: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Forging/hot rolled/ extrusion of steel: round bar/ square bar/ plate/ coil/ wire/ forging
Forging: Shafts with flanks/pipes/tubes/slugs/bar/donuts/ring/cubes/other shapes
pipe : OD: φ6-219 mm, with wall thickness ranging from 1-35 mm.
Finished goods condition: hot forged/hot rolled + annealing/normalizing + tempering/quenching +tempering/any conditions based on the customer's requirement

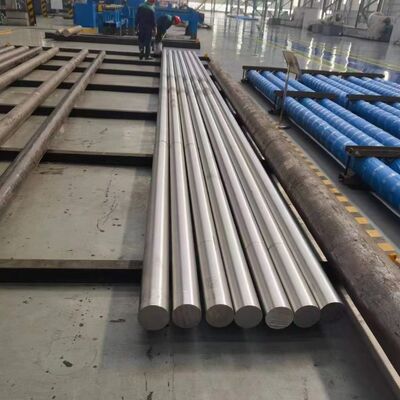

XM-19/S20910 steel round bar
Surface conditions: scaled (hot working finish)/ground/rough machining/fine machining/based on the customer's requirement
Furnaces for metallurgical processing: electrode arc + LF/VD/VOD/ESR/Vacuum consumable electrode.
Ultrasonic inspection: 100% ultrasonic inspection for any inperfections or based on your requirement
XM-19/S20910 steel round bar
All grades steel bar, steel plate, steel sheet, steel tube, steel strip, steel wire ETC.
XM-19/S20910 steel round bar
XM-19 Stainless Steel, a highly fabricable, highly weldable, nitrogen strengthened, austenitic stainless steel, provides twice the yield strength of stainless steel type 316 and a resistance to corrosion equivalent to type 316. Even after extreme forming, XM-19 Stainless Steel stays non-magnetic. Due to all these advantages, it is often used in boat shafting, marine hardware, pumps, valves, and fasteners. The machinability of XM-19 Stainless Steel is comparable to that of alloy 316 or 317. It is formable, but there will be more springback with XM-19 than with other austenitic stainless steels. To achieve maximum hardness, use cold working. Because of XM-19's high tendency toward work hardening, process anneal the work piece after forming to relieve stress.
XM-19/S20910 Steel round bar
XM-19/S20910 steel flat bar
XM-19/S20910 steel sheet
XM-19/S20910 steel plate
XM-19/S20910 steel forging
XM-19/S20910 chemical composition
mechanical properties
| Carbon | 0.06 max | ||
| Chromium | 20.5 - 23.5 | ||
| Iron | Balance | ||
| Manganese | 4 - 6 | ||
| Molybdenum | 1.5 - 3 | ||
| Nickel | 11.5 - 13.5 | ||
| Niobium | 0.1 - 0.3 | ||
| Nitrogen | 0.2 - 0.4 | ||
| Phosphorus | 0.04 max | ||
| Silicon | 1 max | ||
| Sulphur | 0.03 max | ||
| Vanadium | 0.1 - 0.3 | ||
Q1:What product information must I provide before making a purchase?Please provide the grade, width, thickness, and surface treatment requirements, as well as the quantities you require.
Q2:What shipping ports are there?We normally ship from Shanghai, Tianjin, Qingdao, and Ningbo ports
Q3:What are your payment terms?30% T/T in advance and 70% balance before shipment or based on BL copy or LC at sight.
Q4:What about product pricing information?Prices vary due to changes in raw material prices on a regular basis.
Q5:Is it possible to send samples?Of course, we offer free samples and express shipping to customers all over the world.
Q6:Do you offer a service for customized products?Yes, we can produce according to your specifications and drawings.
Q7:Can you assist me in importing steel products for the first time?Yes, we have shipping agent who will arrange the shipment with you.
Q8. What is your delivery time?Within 7 working days after receiving your balance payment.
