제품 상세 정보:
|
| 회사 유형: | TISCO의 대리인 | 가공기술: | 뜨거운 롤 |
|---|---|---|---|
| 등급: | S31803 s32205 2507 s32750 | 표면: | 2B BA NO.4 거울 8K |
| 기준: | ASTM AISI GB DIN JIS EN | 자격증: | SGS / BV |
Quick Detail

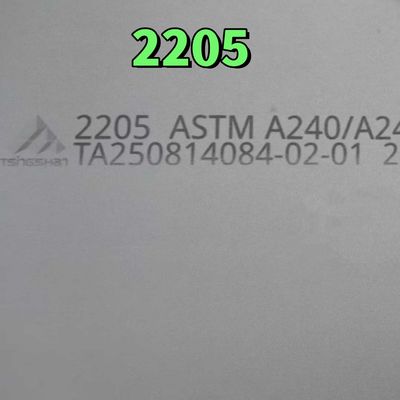

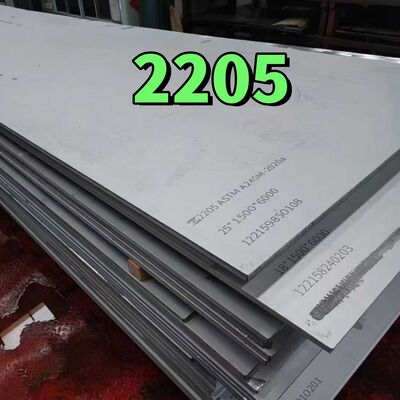

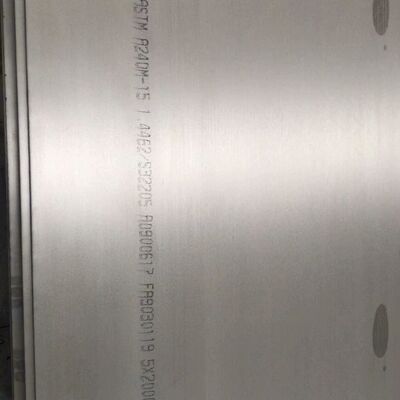

2205 stainless steel plate
|
Name |
2205 stainless steel sheet |
Brand |
AUTO KUMPO/TISCO/BAOSTEEL |
|
size |
1219mm 1500mm 1800mm 2000mm width |
surface |
2B, BA, HL, 8K mirror, PVC coated |
|
thickness |
0.6-30mm |
Certificate |
SGS, BV |
We can produce other size stainless steel plate as customer required
Description
2205 is a duplex (austenitic-ferritic) stainless steel containing about 40 - 50% ferrite in the annealed condition. 2205 has been a practical solution to chloride stress corrosion cracking problems experienced with 304/304L or 316/316L stainless. The high chromium, molybdenum and nitrogen contents provide corrosion resistance superior to 316/316L and 317L stainless in most environments. 2205 is not suggested for operating temperatures above 600°F.
The design strength of 2205 is significantly higher than 316/316L, often permitting lighter wall construction. 2205 has good notch impact toughness down to temperatures below - 40°F. 2205 is welded with E2209 or ER2209 fillers.
| Ni | Cr | Mo | Mn | Si | C | N | S | P | Fe | |
|---|---|---|---|---|---|---|---|---|---|---|
| MIN | 4.5 | 22.0 | 3.0 | - | - | - | 0.14 | - | - | - |
| MAX | 6.5 | 23.0 | 3.5 | 2.0 | 1.0 | 0.03 | 0.2 | 0.02 | 0.03 | Balance |
2205 Coil, 2205 Pipe, 2205 Plate, 2205 Sheet, 2205 Welding Products
Density: 0.278 lb/inch3
Melting Point: 2525- 2630°F
Poisson's Ratio: 0.3
Electrical Resistivity: 481 Ohm - circ mil/ft
| Temperature, °F | 70 | 212 | 392 | 572 |
| Coefficient* of Thermal Expansion, in/in°F x 10-6 | - | 8 | 8 | 8 |
| Thermal Conductivity Btu • ft/ft2 • hr • °F |
8 | 9 | 10 | 11 |
| Modulus of Elasticity, Dynamic psi x 106 | 28 | 26 | 25 | 24 |
* 70°F to indicated temperature.
Minimum Specified Properties, ASTM A 240
| Ultimate Tensile Strength, ksi | 95 |
| 0.2% Yield Strength, ksi | 65 |
| Elongation, % | 25 |
| Hardness MAX, Brinell | 290 |
Minimum Elevated Tensile Properties, Plate
| Temperature, °F | 212 | 302 | 392 | 482 |
| Ultimate Tensile Strength, ksi | 86 | 83 | 80 | 78 |
| 0.2% Yield Strength, ksi | 52 | 49 | 46 | 44 |
| PREn | Critical Pitting Temperature, CPT | |
| 2205 | 34 | 130°F |
| 316L | 24 | 62°F |
Q1. Where is your factory ?
A1: Our company's processing center is located in Wuxi , China.
Which is well equipped with kinds of machines, such as laser cutting machine,mirror polishing machine and so on.We can provide a wide range of personalized services according to the customers' needs.
Q2. What are your company's main products ?
A2: Our main products are stainless steel plate,aluminum ,copper etc.
Q3. How do you control quality ?
A3: Mill Test Certification is supplied with shipment, Third Party Inspection is available.
Q4. What are the advantages of your company ?
A4: We have many professionals, technical personnel, more competitive prices and best after-dales service than other companies.
Q5. How many coutries you already exported ?
A5: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.
Q6. Can you provide sample ?
A6: Small samples in store and can provide the samples for free. Customized samples will take about 5-7days
