제품 상세 정보:
|
| 제품: | 합금강판 | 상태: | 열간압연 |
|---|---|---|---|
| 기술: | 핫 롤링 도장 | 제품 유형: | 강판 |
| 입자: | 맞춤형 | 선적항: | 상하이 |
| 길이: | 2000-6000mm | 가장자리: | 밀 에지, 슬릿 가장자리 |
| 모양: | 그릇 | 애플리케이션: | 압력용기, 보일러, 열교환기 |
| 레귤러 사이즈: | 4*8ft/ 4*10ft/ 1500*3000mm | 두께: | 1mm-30m |
| 두께: | 1/4인치 | 표면: | 우아한 |

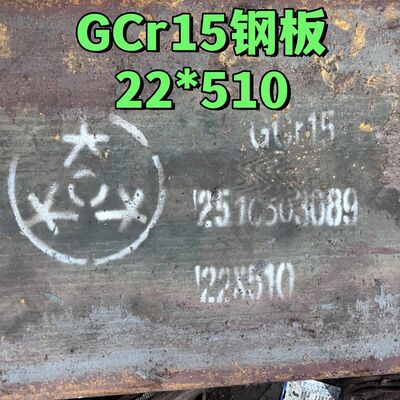

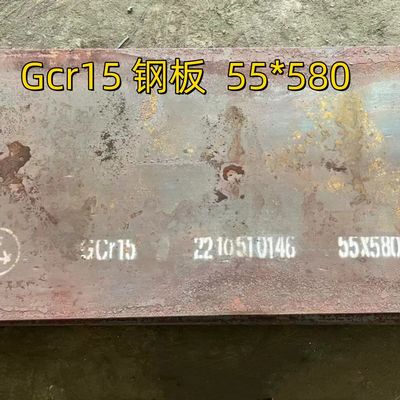

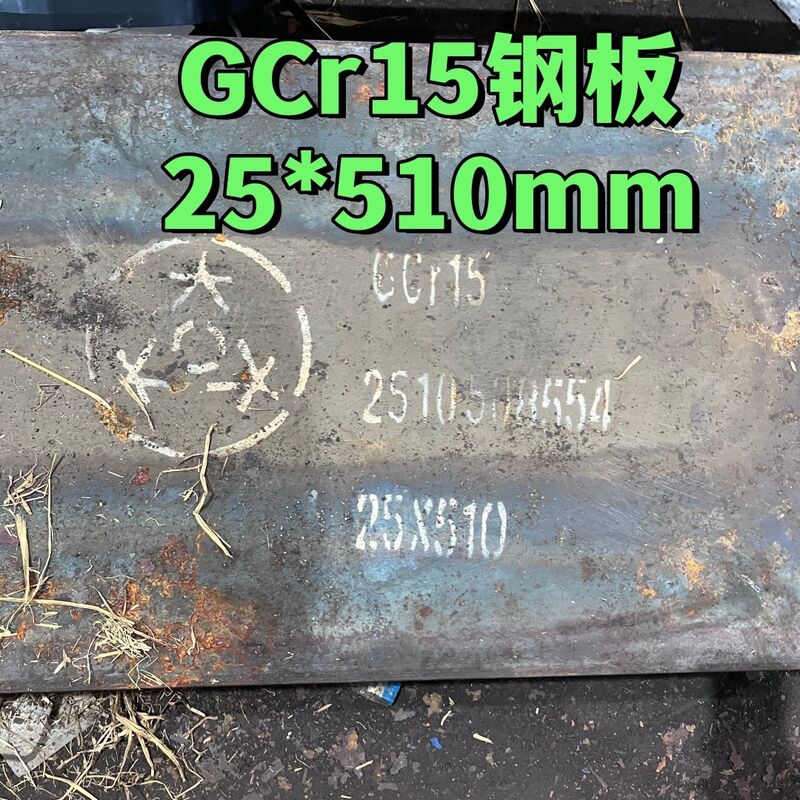

| 강조하다: | 100Cr6 bearing steel plate,DIN 1.3505 alloy steel plate,SAE 52100 steel plate 25*510mm |
||
GCr15 steel is one of the most commonly used Chinese bearing steels, it’s a high carbon chromium bearing steel with high hardenability, high & uniform hardness after heat treatment, high contact fatigue strength, good dimensional stability and corrosion resistance. The cold deformation plasticity is medium, the machinability is general, the weldability is poor, and it is sensitive to the formation of white spots, and there is a first type of temper brittleness.
| Chemical Composition % | ||||||||||||||||
| Steel Grade | C | Si | Mn | Cr | Mo ≤ | Ni ≤ | Cu ≤ | P ≤ | S ≤ | Ca ≤ | O ≤ | Ti ≤ | Al ≤ | As ≤ | As+Sn+Sb ≤ | Pb ≤ |
| GCr15 | 0.95-1.05 | 0.15-0.35 | 0.25-0.45 | 1.40-1.65 | 0.10 | 0.25 | 0.25 | 0.025 | 0.02 | – | 0.0012 | 0.005 | 0.05 | 0.04 | 0.075 | 0.002 |
GCr15 Material Hardness
Bending of GCr15 bearing steel
GCr15 bearing steel is used to manufacture various bearing sleeves with wall thickness ≤12mm and outer diameter ≤250mm, steel balls with diameters of 25.4-50.8mm; also used for other rolling elements with wide range of sizes, such as tapered rollers, cylindrical rollers, spherical rollers, needle rollers, etc.; also used in the manufacture of molds, precision gauges and other mechanical parts that require high wear resistance, high elastic limit and high contact fatigue strength.
GCr15 steel equivalent to US AISI SAE ASTM, European EN, Germany DIN, Japanese JIS, British BSI, France NF and ISO standard.
You may also be interested in GCr15 vs 52100, 100Cr6 and SUJ2 steel.
| GCr15 Equivalent (For reference) | |||||||||
| China | USA | European | Japan | ISO | |||||
| Standard | Grade | Standard | Grade | Standard | Grade | Standard | Grade | Standard | Grade |
| GB/T 18254 | GCr15 | AISI SAE, ASTM A295/A295m | 52100 | EN ISO 683-17 | 100Cr6 (1.3505) | JIS G4805 | SUJ2 | ISO 683-17 | 100Gr6 |
Notes: DIN 17230 is covered by DIN EN ISO 683-17, NF A35-565 is covered by NF EN ISO 683-17.
1)How manys days can you delivery after confirmed the order?
From stock ,we can shipping within 5-7 days.
For customized of common size, will be delivery in 30 days.
and for specially sizes need to negotiate.
2) What's your payment?
1. 30%TT as deposit, 70% balance against the copy of BL.
2. 100% LC at sight /45 days or 60 days LC
3)What's the product's warranty ?
As long as you received our cargo within 1 years, if you have any problem, pls feedback to us.
After confirmed our quality cause, we will resend new pipes or give reasonable compensation for you.
4) Can I have a trail order ?
Of course, we are gald to make a trail order to show our quality and service.
Getting your satification, we can try more cooperation .
5) Can I have a vist ?
Welcome your visiting ,we can communicate and exchange market information to develop more business.
