제품 상세 정보:
|
| 기술: | 콜드 롤 | 너비: | 500/650/726/820/914/1000/1200/1219/1220 1250mm 2500mm 또는 귀하의 요구 사항 |
|---|---|---|---|
| 표면 처리: | 크롬 처리 / 스킨 패스 / 오일 처리 / 오일 처리 안 됨 / 약간 오일 처리됨 / 건조함 | 두께: | 0.12mm-3.50mm |
| 아연 코팅: | 30-275 g/m2 | ||
| 강조하다: | Galvalume steel coil 1.5mm thickness,Aluminum zinc coated steel sheet,Galvanized steel coil 1250mm width |
||

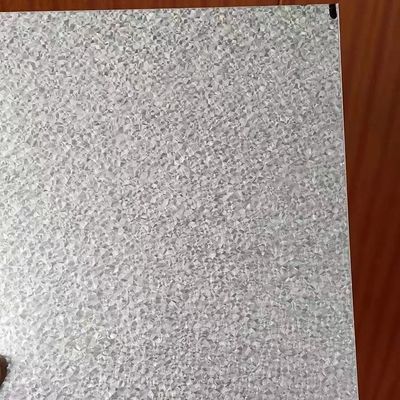

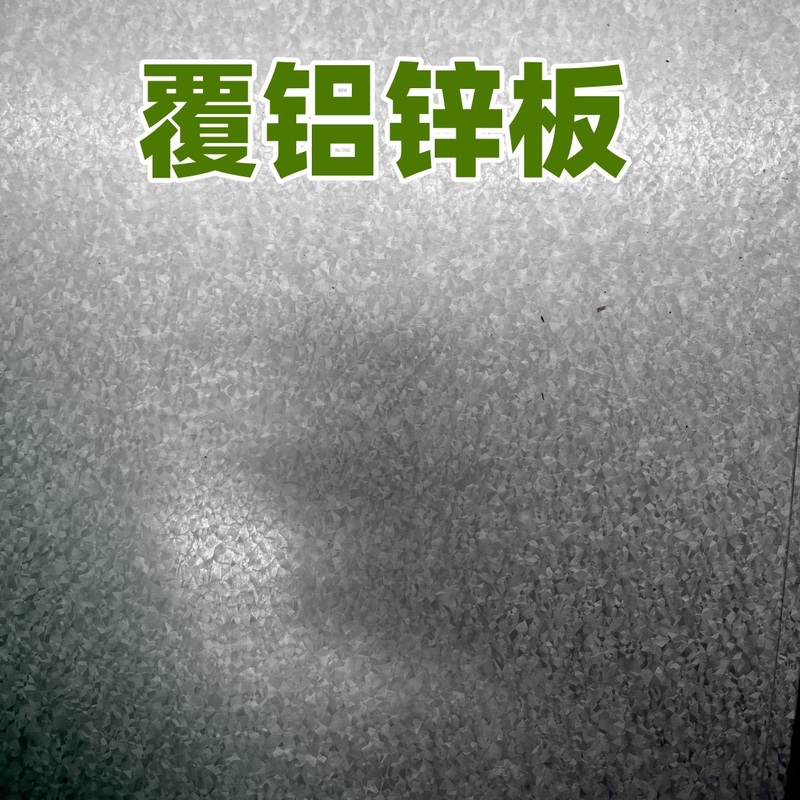

Galvalume steel is also called Aluminum-Zinc Alloy Coated Steel, Zinc-alu steel, aluminized zinc steel (aluzinc steel), SGLC, The galvalume metal is composed of 55% aluminium, 43.4% zinc and 1.6% silicon solidified at 600 ~C. Its whole structure consists of aluminium-iron-silicon-zinc, forming a compact quaternary crystal alloy. The surface of the galvalume steel sheet is characterized by smooth, flat and gorgeous stars, and its base color is silver white. The special coating structure makes it have excellent corrosion resistance. The normal service life of galvalume steel sheet is up to 25a, and its heat resistance is good. It can be used in high temperature environment at 315 C. The adhesion between coating and paint film is good, and it has good processing performance. It can be punched, sheared and welded. The surface conductivity is very good.
1, Commodity: galvanized steel sheet pvc coated
2, Standards: GB/T2518, JIS G 3302, DIN EN 10142, ASTM A 653
3, Material Grade: SGCC, SGCD1, SGCD2,DX51D+Z, DX52D+Z, DX53D+D,etc
4, Thickness: 0.17-4.0mm (+-0.02mm)
5, Width: 600-1500mm (+-2mm)
6, Zinc coating: Z30-275g/m2
7, Surface treatment: (non) Chromated,(un)Oiled,Zero spangle,Minimized spangle,
Regular spangle, Skin-passed,Non skinpassed
8, Coil weight: 3-8MT or as client requirement
9, Coil ID: 508/610mm
10, Quality: No Joint, No Bends, no spots, no roller marks.
MTC will be provided with goods, third part inspection is acceptable, for example
|
NAME |
PPGI |
GALVANIZED |
GALVALUME/ZINC |
|
CERTIFICATE |
ISO9001:2008 |
||
|
|
EN10142 |
ASTM A653M |
ASTM A792M |
|
|
CGCC |
DX51D+Z/DX52D+ |
DX51D+AZ/DX52D |
|
COATING |
RAL COLOURS |
Z60g/m2 to Z275g/m2 |
AZ30g/m2 to AZ1 |
|
SIZE |
(0.13mm-1.5mm)X1000mm |
(0.13mm-4.0mm)X1500mm OR |
(0.12mm-4.0mm)X |
|
|
Steel coil |
Steel coil |
Steel coil |
|
|
Hot rolled-cold rolled |
Hot rolled-cold |
Hot rolled-cold rolled |
|
SURFACE |
Mini/regular/big/zero |
Mini/regular/big/zero spangle, |
|
|
APPLICATION |
Structural use ,roofing, commercial use, household appliance, industry, family |
||
|
SPECIAL |
Wear resistant steel, high- strength - steel plate |
||
Sample Charge
1. Samples charge: According to your requirements . Sampling time: 30days with minimum qty order.
2. Samples charge :Free for Existing Samples Sampling time:1day
Advantage
1. Low MOQ: We will do our best to make you satisfied.
2. Good Service : We treat clients as friend.
3. Good Quality :We have strict quality control system .Good reputation in the market.
4. Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
5. Supply Ability: 50000 ton monthly.
Our Innovation
|
Quality & Service At Yuxing, our #1 priority has always been providing our clients with great quality products and superior customer service. |
|
Quick Lead Time We're dedicated to providing the quickest turnaround times and work very Hard to ensure that all of your deadlines are met. |
|
Unbeatable Prices We continuously strive to find ways of reducing our production costs, and passing the savings Over to you! |
|
After-sale service In order to meet customer requirements, we will improve our services based on customer feedback. |
Order Guide
An order of inquiry should be accompanied by the following information.
1. Size : Thickness / Width / Length ( in case of Cut Lengths).
2. Specification requirement : Coating designation or Wt / Type of coating & surface treatment Coil I.D / Packing Weight.
3. Quantity.
4. Intended use
5. Packing and marking requirement.
6. Delivery Requirement.
7. Required inspection, if other than mill inspection.
8. Other pertinent information.
Our Service
WHY CHOOSE US?
1. 10 Years Manufacture History: We know how to control the production details to keep the quality stable.
2. Certified Company and Products: Our products are certified by BV, ISO, SGS….
3. Strictly QC team: Our QC team are constitute by 30 experienced engineer, which guarantee our best qulaity
3. Short Delivery Time: We have two lines for producing galvanized coil and two lines color coil production lines. Production output is 7 million tons per year.
Q: Are you factory or trading company?
A: We are factory!
Q: what is the length can you offer?
A: Theoretically, the length within in 6M are all OK. Because the roofing sheet are transported by 20feet container. And container length is 5.8M, so in order to take good advantage of container space, we suggest the length no more than 5.8M.
Q: What is the difference between PVDF & PE coating?
PVDF is the most advanced painting in construction industry, it is with high corrosion resistance and color retention, and the life time could last to 20-25 years. Currently, PE is the most widely-used painting in the color coated steel coils. It is characterized by good overall performance, and high economic as well.
Q: Can you provide the high strength roof sheet?
Yes, G550, with its yield strength over 550 mpa.
Q: How is the transportation?
A: Usually the roofing sheets are loaded in 20feet containers. It can take good advantage of container space. It is more reasonable.
Q: What is the loading quantity in 20ft containers?
A: Loading quantity is 25MT (Because of limit of container weight)
Q: How long time your paint will last?
A: The durable time will be different in different zinc, paint coating. Also different environment has different effect on the durable time.
Q: Can you tell me your customer information in my country?
A: Sorry, we can’t. This is our customer’s privacy, we must protect it.
Meanwhile, your information are e with us.
