제품 상세 정보:
|
| Length: | 3-12meter | type: | seamless pipe |
|---|---|---|---|
| OD: | 10-325mm | thickness: | SCH10 - SCH 160 |
| company type: | factory and trading | Grade: | 304,304L,310S,316L,321,904L,S32760.etc |
| 강조하다: | ASTM A269 316L stainless steel tube,3/4 inch seamless steel tube,mirror polished stainless steel tubing |
||
| Products name | Stainless steel pipe / SS pipe |
| Type | seamless pipe |
| Out Diameter | 10-630mm |
| Wall Thickness | 1-50mm |
| Length | 6-11mm |
| Main Material | 304 304L 309S 310S 321 316L 316Ti 904L 2205 2507.etc |
| Deliver time | 5-15 days according to the quantity |
| Packing | Standard export seaworthy packing or as required |
| Other shape pipes | Square pipes, Rectangular tube , Special pipe |
| Surface details | Polished / not polished |
| MOQ | 2 ton |
| Port | Shanghai |
We can produce diferent standard stainless steel pipe, the mainly material and the standard is as following.
we can also produce special material pipes, like 904L duplex steel 2205 2507.etc
|
Character |
General Code |
UNS Code |
Standard |
Application |
|
Stainless Steel Pipe |
304 |
S30400 |
ASTM A312 |
Chemical, Oil chemical, Heat exchange, Liquid transfer,Machinery, Paper making, Power station, Construction and etc. |
|
304L |
S30403 |
ASTM A213 |
||
|
316L |
S31603 |
ASTM A269 |
||
|
316Ti |
S31635 |
ASTM A511 |
||
|
321 |
S32100 |
ASTM A778 |
||
|
321H |
S32109 |
ASTM A554 |
||
|
310 |
S31000 |
ASTM A249 |
||
|
310S |
S31008 |
GOST9941 |
||
|
317 |
S31700 |
JIS3459 |
||
|
317L |
S31703 |
EN10216-5 |
||
|
347 |
S34700 |
DIN17458 |
Material analysis of our seamless stainless steel pipe
What is stainless steel used for?
Stainless steels of various kinds are used in thousands of applications.
| Grade | Chemical Composition | ||||||||
| C max | Si max | Mn max | P max | S max | Ni | Cr | Mo | Others | |
| TP 304 | 0.08 | 0.75 | 2 | 0.04 | 0.03 | 8 - 11 | 18 - 20 | ||
| TP 304L | 0.035 | 0.75 | 2 | 0.04 | 0.03 | 8 - 13 | 18 – 20 | ||
| TP 310S | 0.08 | 0.75 | 2 | 0.045 | 0.03 | 19 - 22 | 24 -26 | 0.75 max | |
| TP 316 | 0.08 | 0.75 | 2 | 0.04 | 0.03 | 10 - 14 | 16 – 18 | 2 – 3 | |
| TP 316L | 0.035 | 0.75 | 2 | 0.04 | 0.03 | 10 - 15 | 16 - 18 | 2 - 3 | |
| TP 317 | 0.08 | 0.75 | 2 | 0.04 | 0.03 | 11 - 14 | 18 - 20 | 3 - 4 | |
| TP 321 | 0.08 | 0.75 | 2 | 0.04 | 0.03 | 9 - 13 | 17 - 20 | Ti: 5×C% | |
| Mechanical Properties | |||||
| Grade | Tensile Strength Mpa, (Min) | Yield Strength Mpa, (Min) | %Age Elongation in 50mm gauge length min | Hardness (Max) | |
| BHN | Rb | ||||
| 301 | 585 | 244 | 56 | 197 | 75 |
| 304 | 585 | 244 | 56 | 191 | 72 |
| 304L | 585 | 210 | 56 | 191 | 72 |
| 310S | 615 | 245 | 56 | 197 | 75 |
| 316 | 615 | 245 | 57 | 197 | 75 |
| 316L | 585 | 215 | 56 | 197 | 75 |
| 321 | 615 | 245 | 56 | 197 | 75 |

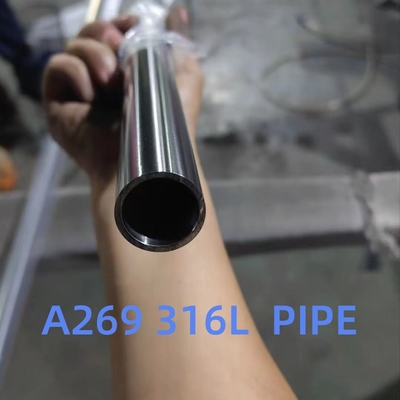

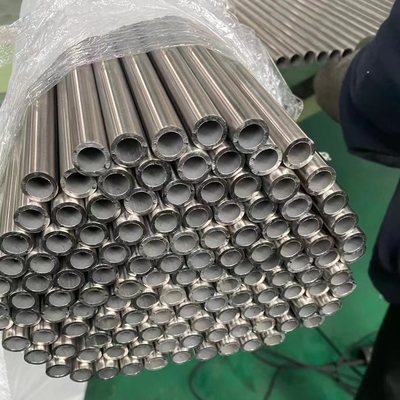

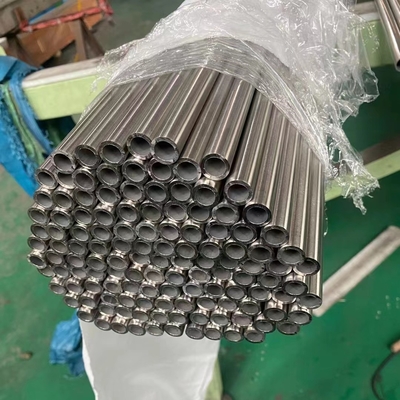

Photos of our seamless stainless steel pipe
Q:Are you trading company or manufacturer ?
A: We are professional manufacturer for stainless steel.
Q: Will you delivery the goods on time?
A: Yes, we promise to provide best quality products and delivery on time. Honesty is our company's tenet
Q: Do you provide samples? Is it free or extra?
A: The sample could can provide for customer with free, but the courier freight will be covered by customer account.
Q: Do you accept the third party inspection?
A: Yes, absolutely we accept.
Q: Will stainless steel rods be packed in wooden boxes during transportation?
A: In order to ensure the accurate straightness of stainless steel rods, we will only pack in wooden boxes according to customer requirements.
Q: How can l get your quotation as soon as possible?
A: The email and fax will be checked within 12 hours, meanwhile, the Wechat and WhatsApp will be online in 24 hour. Please send us your requirement and order information(stainless steel material, size, quantity, destination port), we will work out a best price soon.
